Industrial 3D Vertical Wall Mural Printer Machine PE-S60

Home > Advertising Machinery > Wall Printer > PE-S60

Industrial 3D Vertical Wall Mural Printer Machine-PE-S60
Industrial 3D Vertical Wall Mural Printer Machine-PE-S60
Industrial 3D Vertical Wall Mural Printer Machine-PE-S60
Industrial 3D Vertical Wall Mural Printer Machine-PE-S60
Industrial 3D Vertical Wall Mural Printer Machine-PE-S60

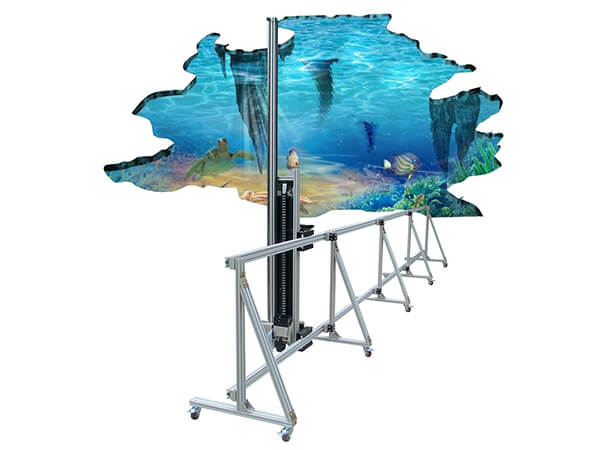

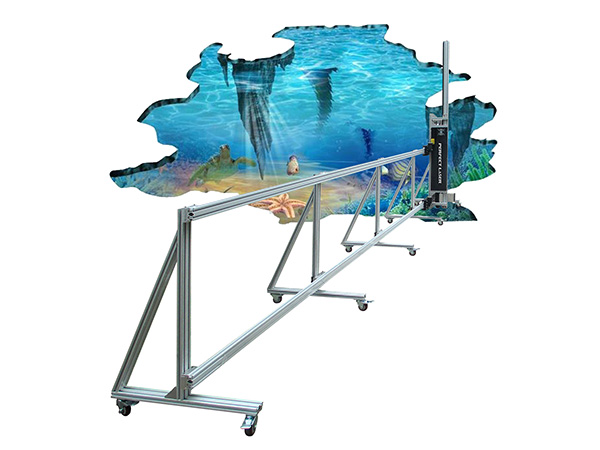

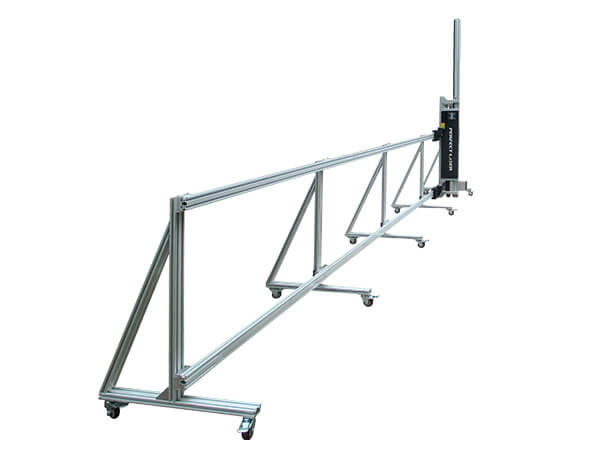

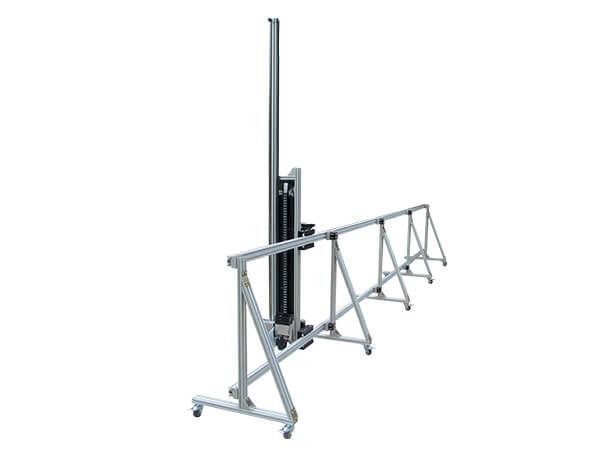

Industrial 3D Vertical Wall Mural Printer Machine

Model: PE-S60


Product description

Perfect Laser has many years of experience in the wall mural printer machine industry, strong technical strength, advanced production technology, is the industry leader in the wall mounted printer.Perfect Laser newly developed a vertical small wall mural printer machine. No need to move the machine during the inkjet process, and the printing accuracy is very high. Due to the use of high-quality ink, the finished inkjet product is full-color and full-color. The 3D vertical wall printing machine is well received by customers because of its excellent quality and perfect after-sales service.


Product features

1. This 3D vertical wall printing machine is equipped with a brushless servo motor control system, with no raster bar, vector positioning function. And the motor is free of carbon brushes, eliminating the need for maintenance, regular replacement, cleaning, and worrying about garbled graphics after wear. Make the painting faster and the finished product better.
2. The wall mural printer machine use the most advanced technologies such as high-definition piezoelectric ink jet technology and variable ink drop technology are used. These technologies improve the accuracy, sharpness, and beauty of the picture, and also increase the delicateness of the indoor color painting surface and the working speed of outdoor painting.
3. The wall mural printer machine's actual screen size height is 2000mm, and the width is not limited. The operation does not require splicing or the location of the mobile machine. Customers who need large format, no longer have to worry about the size of the format.
4. The 3D vertical wall printing machine is also equipped with a simple multi-color ink cartridge ink supply system, which has the advantages of stability and convenience. It also supports quick separation of pipelines and separation of water and electricity.
5. The fuselage specially reserved UPS, inverter interface, can be used to install a built-in power system, so that the machine can still operate for about 10 hours after power off. It eliminates the problem that the machine cannot work properly due to power outages, improving work efficiency and using more peace of mind.
6. The wall mural printer machine is equipped with a very advanced sensing system. The system is imported from the United States and has the functions of two-way induction and automatic positioning. It can automatically deal with the problem of wall tilt and wall unevenness, which can effectively reduce the risk of damage to the head.
7. The design of the 3D vertical wall printing machine head is more user-friendly, and it adopts a detachable structure and integrated design, which can greatly avoid the damage of the head caused by the handling, thereby prolonging the actual service life of the nozzle.


Application

The 3D vertical wall printing machine can paint various materials such as rice paper, glass, latex paint wall, interior and exterior walls, imitation porcelain walls, ceramic tile, shell powder, putty wall and special materials.



Technical Date

Model

PE-S60 Wall Mural Printer Machine

Ink

Special ink for synthetic pigment wall painting

Assembly method

Self steering fastener, pulley, track fastener, quick disassembly and assembly

Control mode

Wired handle, wired control

Motor technology

DC brushless servo motor, vector positioning technology, five star grating

Feeding system

Negative pressure automatic feeding, 340ml pigment library, multi-color one, special color for, with a sealed plug and dust cover

Painting speed

High, medium, low, three-speed adjustable

Painting resolution

Indoor 720*300dpi or 720*600dpi or 720*1200dpi or 720*2440dpi

Outdoor VL720*300dpi or VL720*600dpi or 720*1200dpi or 720*2440dpi

Picture type

Support JPG, BMP, TIFF, PDF, AI, PSD, CDR and other files (some formats need to be converted)

Actual painted size

Height 2000mm, wide width can be extended

Power Supply

AC110V90-132V/AC220V180-264VAC47-63HZ

Power consumption

No-load 20W, general 75W, Max to 250W

Noise

Standby <20dBA, drawing <50dBA

Operation

-10℃-60℃14℉-140℉10%-80% relative humidity, non condensable state

Storage

-30℃-60℃-22℉-140℉10%-80% relative humidity, non condensable state

System platform

Windows XP/Win 7/Win 8/Win 9/Win 10

Motherboard configuration

Octuple-core CPU, 2GBDDR memory, USB2.0/3.0 data interface

Machine language

Chinese,English(Customizable)

Print mode

Pass

Speed (per square meter per hour)

Exterior wall model

High

18Plane / hour

Medium

14Plane / hour

Low

10Plane / hour

Interior wall model

High

6Plane / hour

Medium

5Plane / hour

Low

4Plane / hour

Equipment appearance

Actual size

Machine package size

Cross track packing size

Length

6000mm

Length 2610mm

Length 1200mm

Width

670mm

Width 450mm

Width 900mm

Height

2640mm

Height 560mm

Height 390mm

Weight

60kg

Rack packing weight 61kg

Cross track packing weight 56kg

Package type

Wooden box

Note: the above technical parameters shall be the design parameters. If there is any difference, the actual use efficiency of the equipment shall prevail.
