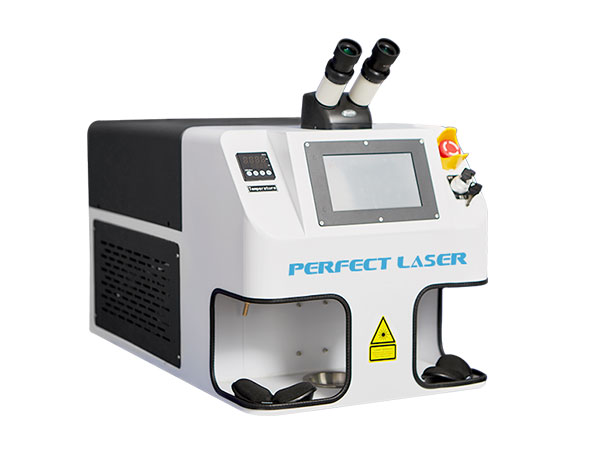

150 Watts Desktop Gold & Silver Jewelry Laser Spot Welding Machine -PE-W100A

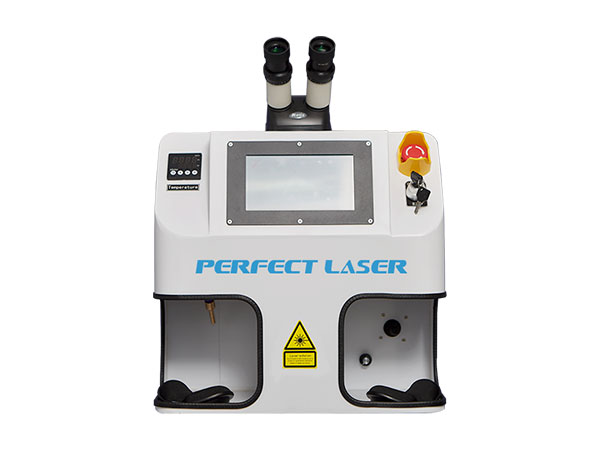

150 Watts Desktop Gold & Silver Jewelry Laser Spot Welding Machine -PE-W100A

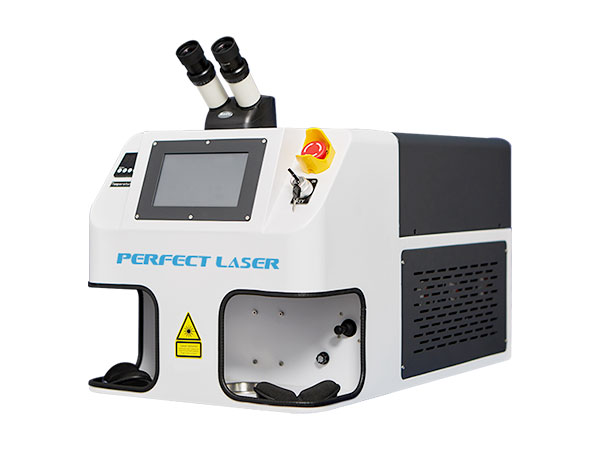

150 Watts Desktop Gold & Silver Jewelry Laser Spot Welding Machine -PE-W100A
150 Watts Desktop Gold & Silver Jewelry Laser Spot Welding Machine -PE-W100A
150 Watts Desktop Gold & Silver Jewelry Laser Spot Welding Machine

Model: PE-W100A


Product Introduction


Perfect Laser’s PE-W100A is a new high-efficiency and high speed jewelry spot welding machine that can achieve various welding effects.

Jewelry laser welder uses high energy laser pulse to heat the material in small areas locally.The energy of laser radiation diffuses to the interior of the material through heat conduction, melting the material and forming a specific melting pool.

This jewelry welder uses the world's very powerful automatic shading system, which eliminates the eye irritation during work time and reduces the sense of fatigue.

Due to its unique advantages, jewelry spot welding machine has been used in gold and silver jewelry processing and welding of micro and small part successfully .

Product Features


1. The PE-W100A jewelry spot welding machine is very compact, can be put in desk, water chiller is integrated, plug to play.

2. Humanized design, ergonomic, long-time work without fatigue.

3. Small thermal impact area, high welding quality, welding joints pollution-free, high efficiency and environmental protection.

4. With a microscope and a CCD, double observation system, the CCD is built into the control screen, reducing the external space of the jewelry laser welder.

5. This jewelry spot welding machine adopts the British imported ceramic concentrating cavity, corrosion resistance, high temperature resistance, high photoelectric conversion efficiency, concentrating cavity life (8-10 years), xenon lamp life is more than 8 million times.

6. Energy, pulse width, frequency, and spot size can be adjusted in a large range to achieve a variety of welding effects.

7. This jewelry welder can weld narrow places, deep cavity repair welding, will not damage the surrounding walls.It does not deform the mold product or sink around the melting tank.

8. Special argon protection, the control system can freely adjust the inlet and exhaust time, the supplementary welding site and base material will not be oxidative burns.

Application


The jewelry spot welding machine mainly used for the punching and spot welding of gold and silver jewelry.

It can also be used in cold processing of high alloy steel, hot forging high alloy steel, nickel-containing tool steel, steel, copper alloy, brass, copper, high toughness aluminum and other metal materials of welding alloy.

Technical Data

Product Name

Gold Silver Jewelry Laser Spot Welding Machine

Model

PE-W100A

Laser Medium

Nd3+:YAG

Laser Power

150W

Laser Wavelength

1064nm

Pulse Width

15ms

Pulse Frequency

1.0-15.0Hz Graded Adjustable

Welding Spot Diameter

0.2-2mm

Filler Wire Diameter

0.1-0.5mm

Power Consumption

3KW15A

Power Supply

AC220V+5% Single Phase

Operation Interface

A 7-inch LCD Touch Screen Is Bilingual

(Chinese / English)

Locating System

Microscope With Coaxial CCD

Cooling Typed

Water Circulation Air Cooling

Machine Dimensions

720*420*590mm

Machine Net weight

50KG

Work Environment

Temperature 5℃-35℃, Humidity 5%-85%.

Training

VCD training + 24 hours afters-sales service

Warranty

24 months


×
