Model: PE-Z1000 / PE-Z1500 / PE-Z2000

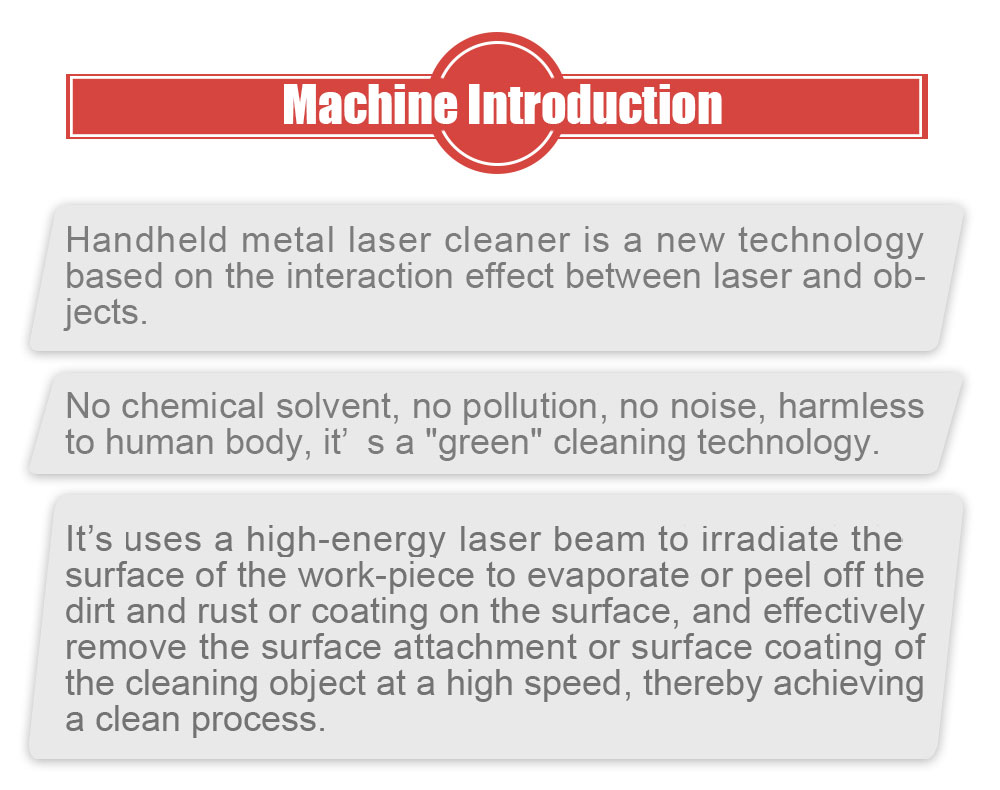

Perfect Laser 1000w/1500w/2000 Watts metal laser cleaning machine is a new generation of industrial surface cleaning laser equipment.
It adopts high-quality laser, laser optical scanner and control system to meet the requirements of metal surface cleaning process. The metal laser cleaning machine has the characteristics of fast speed, high efficiency, good effect, wide application and green environmental protection.
No chemical solvent, no pollution, no noise, harmless to human body, laser paint removal machine is a "green" cleaning technology.

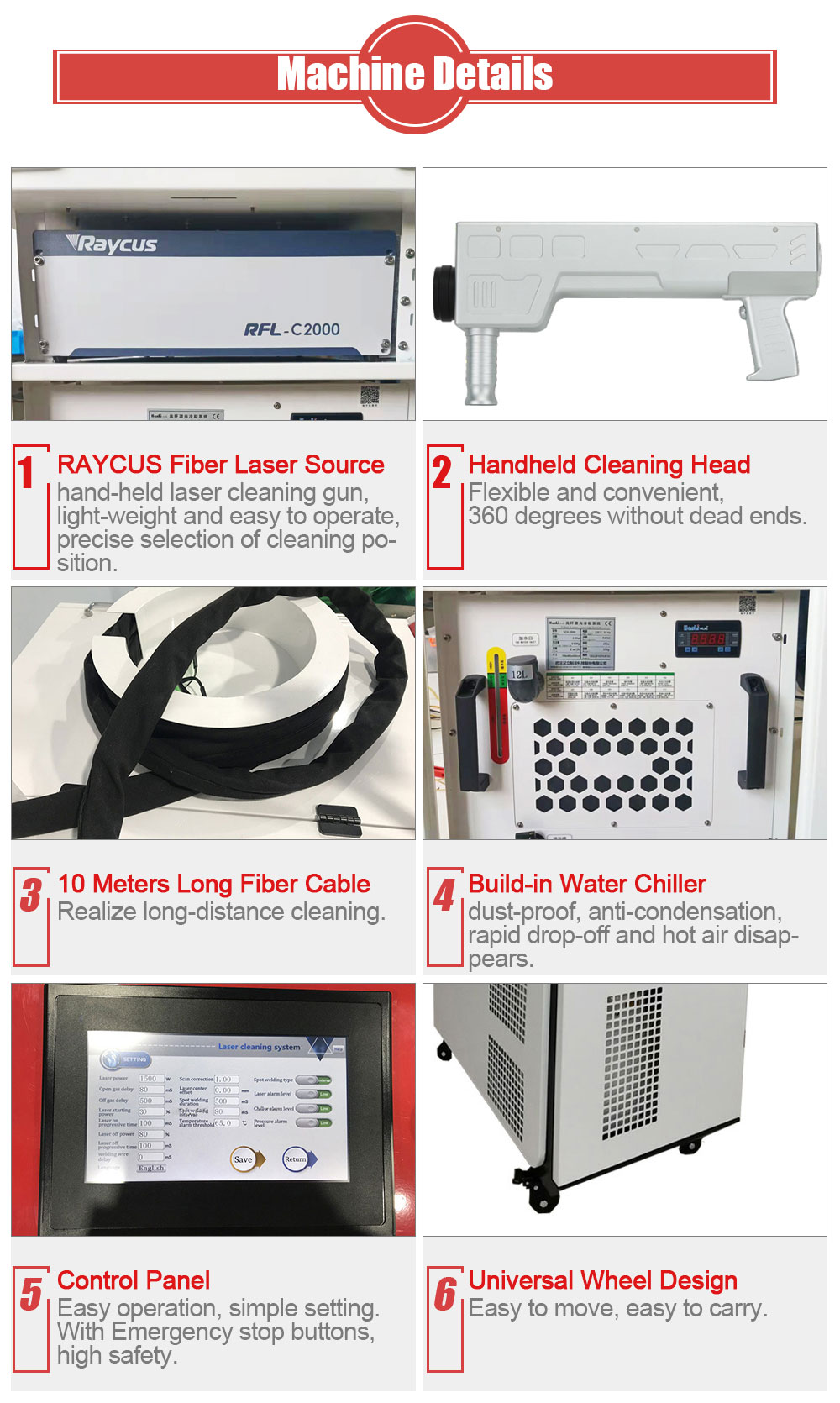

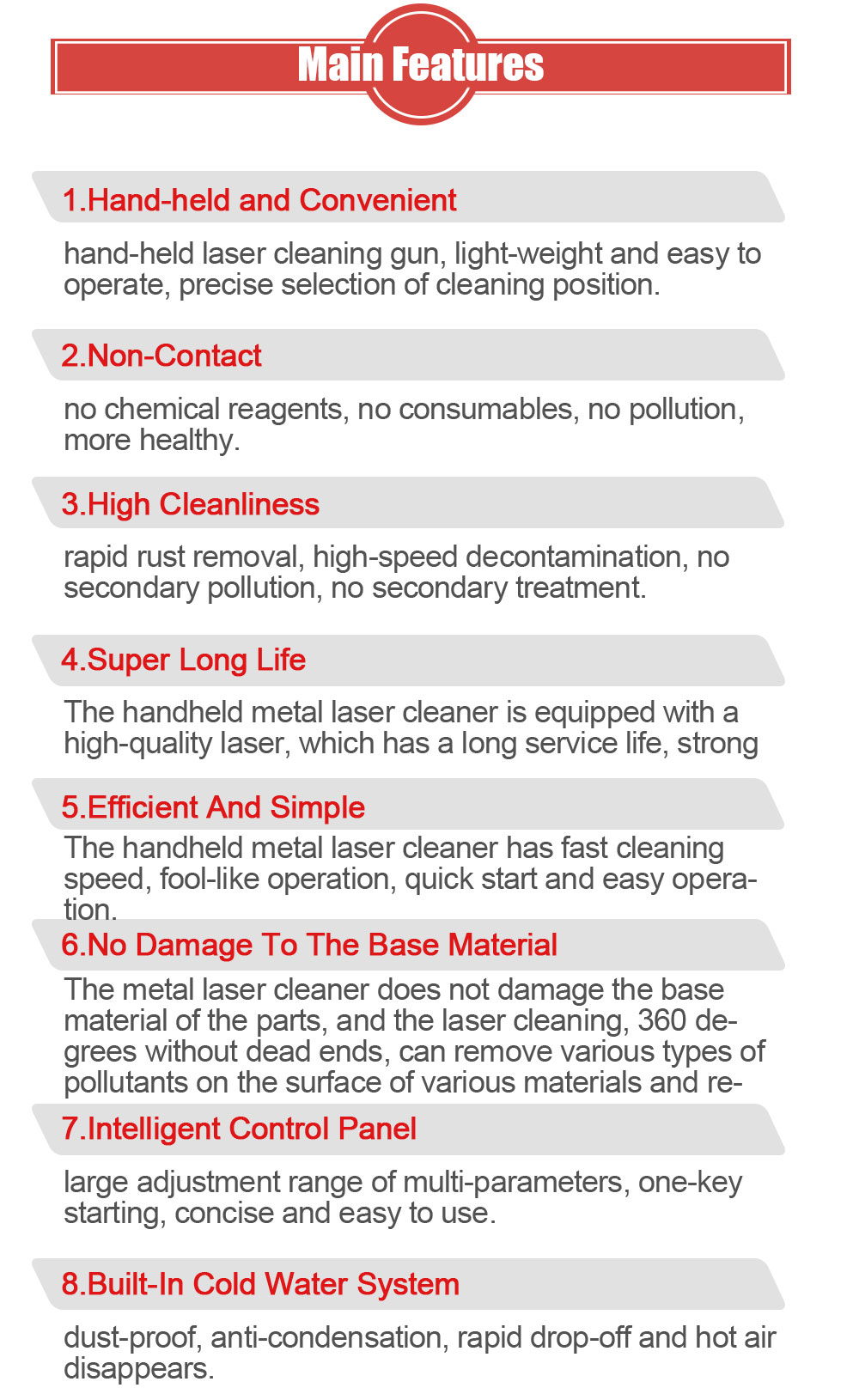

1. Hand-held and Convenient: Hand-held laser head, light-weight and easy to operate, can precise selection of cleaning position.
2. Non-Contact: It does not need chemical reagents, no consumables, no pollution, and is healthier.
3. High Cleanliness: It can quickly remove rust, high-speed decontamination, no secondary pollution and no secondary treatment.
4. Super Long Life: The handheld metal laser cleaning machine is equipped with a high-quality laser, which has a long service life, strong stability, low maintenance cost, power saving and energy saving.
5. Efficient And Simple: The handheld metal laser cleaning machine has fast cleaning speed, fool-like operation, quick start and easy operation.
6. No Damage To The Base Material: The laser paint removal machine does not damage the base material of the parts, and the laser cleaning, 360 degrees without dead ends, can remove various types of pollutants on the surface of various materials and restore the true color.
7. Intelligent Control Panel: The multi-parameter adjustment range is large, and the one-key start-up is simple, clear and easy to use.
8. Built-In Cold Water Chiller: It’s dust-proof and anti-condensation and rapidly reduces leakage and the hot air disappears.
1. Application industry
This metal laser cleaning machine is widely used in environmental protection, rubber, ship molds,ships, auto parts,machine tools, confidential machinery, rail weapons and equipment industries, nuclear power, electrical appliances, medical equipment,digital products and other industries.
2. Application Scope

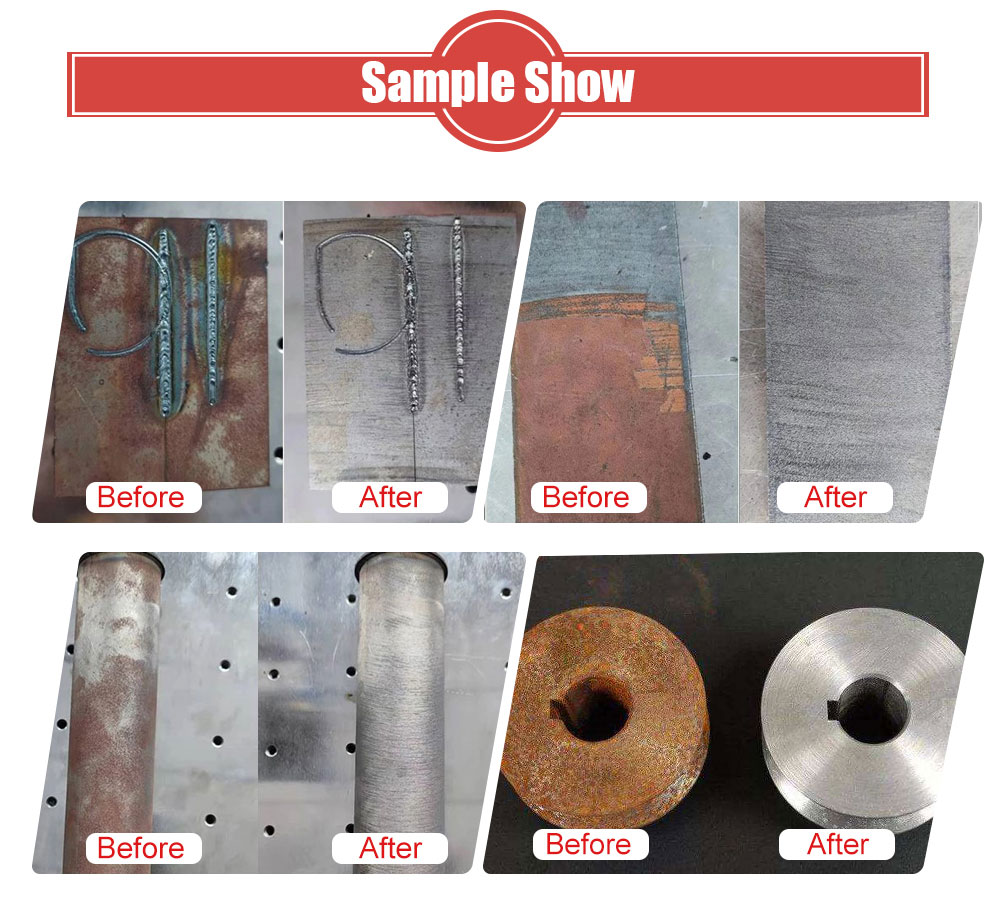

The metal laser cleaning machine is widely used in laser rust removal, paint removal, oil removal, oxide removal, screw cleaning, tire mold cleaning, welding seam cleaning, etc.

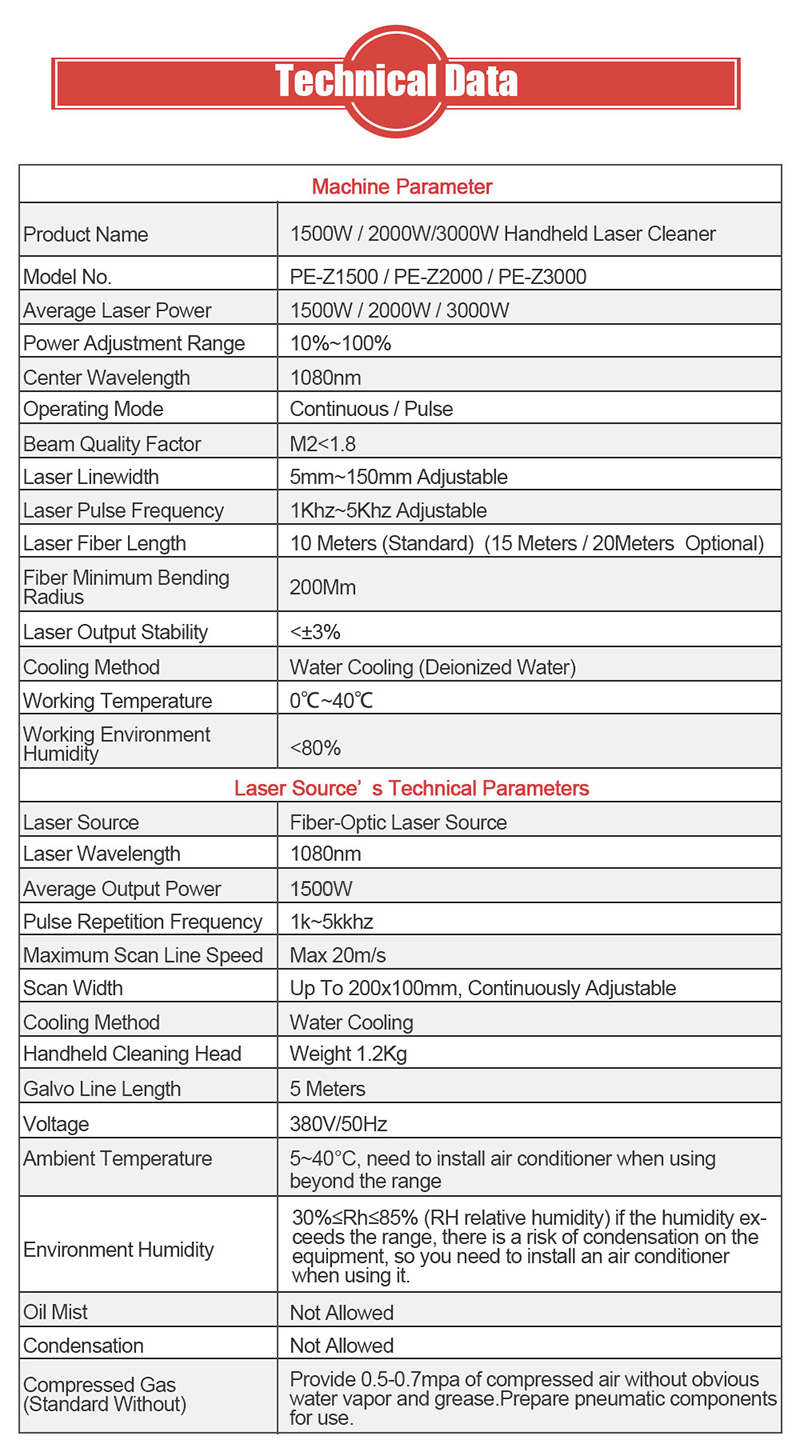

Product Parameters | |
Product Name | 1000W /1500W / 2000W Handheld Laser Cleaner |
Average Laser Power | 1000W / 1500W / 2000W |
Power Adjustment Range | 10%~100% |
Center Wavelength | 1080nm |
Operating Mode | Continuous/Pulse |
Beam Quality Factor | M2<1.8 |
Laser Linewidth | 5mm~150mm Adjustable |
Laser Pulse Frequency | 1Khz~5Khz Adjustable |
Laser Fiber Length | 10 Meters (Standard) 15 Meters / 20Meters (Optional) |
Fiber Minimum Bending Radius | 200Mm |
Laser Output Stability | <±3% |
Cooling Method | Water Cooling (Deionized Water) |
Working Temperature | 0℃~40℃ |
Working Environment Humidity | <80% |
Laser Source’s Technical Parameters | |
Laser Source | Fiber-Optic Laser Source |
Laser Wavelength | 1080nm |
Average Output Power | 1000W |
Pulse Repetition Frequency | 1k~5kkhz |
Maximum Scan Line Speed | Max 20m/s |
Scan Width | Up To 200x100mm, Continuously Adjustable |
Cooling Method | Water Cooling |
Handheld Cleaning Head | Weight 1.2Kg |
Galvo Line Length | 5 Meters |
Voltage | 380V/50Hz |
Ambient Temperature | 5~40°C, need to install air conditioner when using beyond the range |
Environment Humidity | 30%≤Rh≤85% (RH relative humidity) if the humidity exceeds the range, there is a risk of condensation on the equipment, so you need to install an air conditioner when using it. |
Oil Mist | Not Allowed |
Condensation | Not Allowed |
Compressed Gas (Standard Without) | Provide 0.5-0.7mpa of compressed air without obvious water vapor and grease.Prepare pneumatic components for use. |
